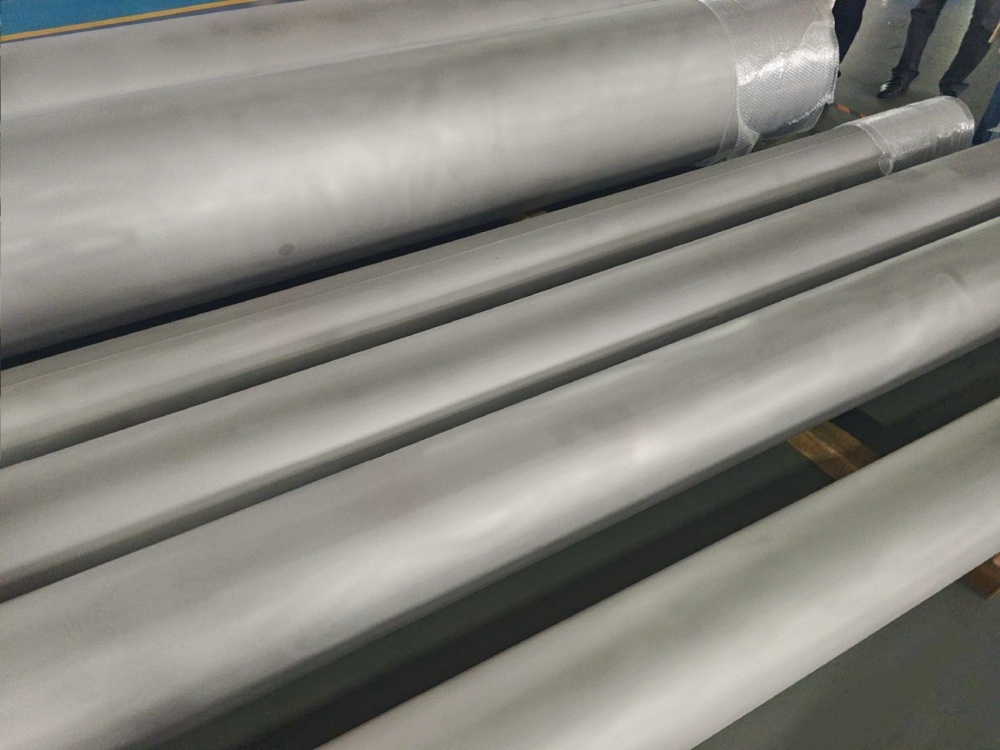

ASTM A790 Pipe/Tube & Standard Specification

--A Guide to Duplex Stainless Steel Pipe Standards

Explore the ASTM A790 standard for seamless and welded duplex stainless steel pipes. Learn about key grades, technical requirements, and industrial applications.

 ASTM A790 Standard Specification PDF Download

ASTM A790 is a key specification for seamless and welded ferritic/austenitic duplex stainless steel pipes in industrial piping systems. Understanding this standard is crucial for proper material selection in harsh environments requiring high strength and excellent corrosion resistance.

Scope and Core Values

ASTM A790, published by the American Society for Testing and Materials (ASTM), primarily covers seamless and straight-seam welded duplex stainless steel pipes for use in generally corrosive environments. A790 pipes are ideal for handling chloride-containing media or high-stress conditions, ensuring that piping products possess both the toughness and corrosion resistance of austenitic stainless steel and the high strength and resistance to stress corrosion cracking of ferritic stainless steel.

Main Material Grades

ASTM A790 covers a variety of duplex steel grades. S31803 is the original duplex steel grade. S32205 is an enhanced version of S31803, offering superior resistance to pitting and crevice corrosion, and is currently the most widely used grade. The ASTM A790 standard also includes super duplex steel grades such as S32750, which offer even higher strength and corrosion resistance, making them suitable for more challenging corrosive environments, such as high-temperature seawater or high-concentration chloride environments.

Key Technical Requirements

ASTM A790 sets stringent requirements for the manufacture and inspection of pipes. For example, it requires precise control of chemical composition to ensure a balance between the austenitic and ferrite two-phase microstructures. To optimize the material's mechanical properties and corrosion resistance, the standard also specifies solution annealing heat treatment processes. Furthermore, all pipes must undergo rigorous mechanical property testing (such as tensile testing) and non-destructive testing (such as hydrostatic testing or eddy current testing) to ensure product integrity and reliability.

Industrial Applications

Duplex steel pipes manufactured according to the ASTM A790 standard are widely used in oil and gas, chemical processing, marine engineering, pulp and paper, and seawater desalination industries. In these applications, piping systems must withstand not only high pressure and mechanical stress but also the erosion of corrosive fluids. The A790 standard ensures that pipelines can operate safely and for extended periods under these complex conditions.
