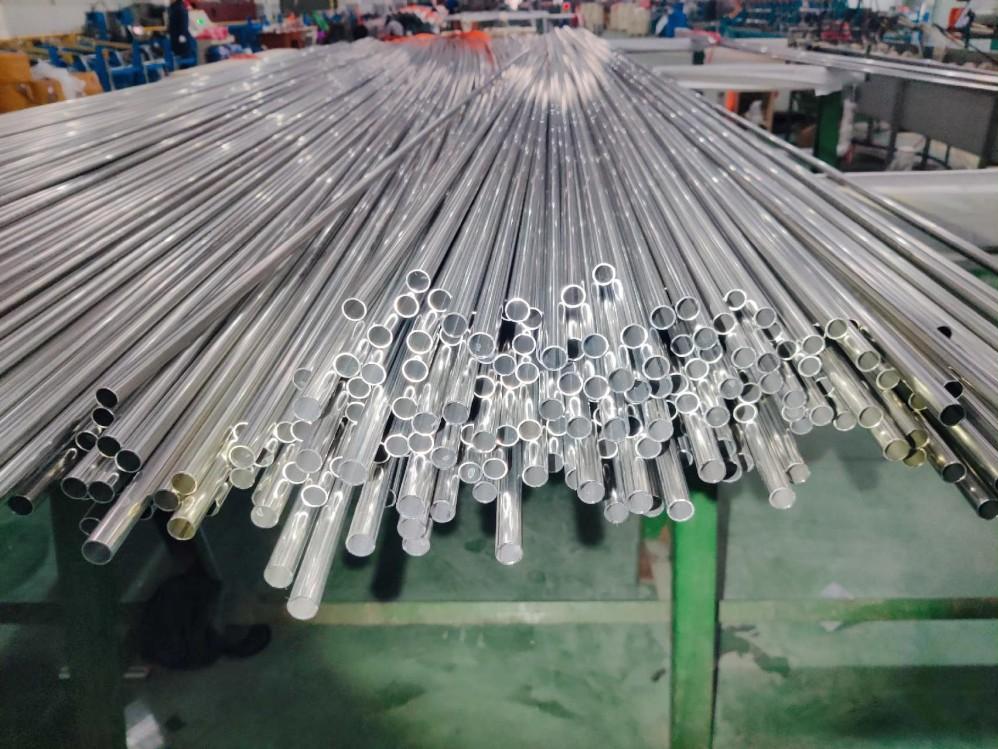

ASTM B705 Standard Specification for Nickel-Alloy (UNS N06625, N06219 and N08825) Welded tube

 ASTM B705  Standard Specification PDF Download

——Standard requirements and engineering application analysis of high corrosion resistant nickel alloy welded tubes

Explore ASTM B705 specifications for welded nickel alloy tubes, focusing on UNS N06625 and N08825 applications. MTSCO delivers ISO-certified, corrosion-resistant piping solutions tailored for severe chemical and marine engineering environments.

ASTM B705 is an important standard for specific nickel alloy welded tubes, mainly applicable to materials such as UNS N06625, N06219, and N08825. These alloys are renowned for their excellent corrosion resistance and high-temperature stability, and are widely used in the fields of chemical engineering, oil and gas, marine engineering, and energy. This standard provides clear regulations on the chemical composition, mechanical properties, manufacturing process, and inspection methods of tubes, aiming to ensure the long-term safe operation of welded tubes under harsh working conditions.

From the perspective of material properties, N06625 and N06219 belong to high alloy nickel materials, which have excellent resistance to pitting corrosion, crevice corrosion, and stress corrosion cracking, and are suitable for chloride containing and high-temperature environments. N08825 exhibits stability in acid and reducing resistant media, and is commonly used in sulfur-containing and acidic conditions. ASTM B705 requires welded tubes to use mature and stable welding processes, and to undergo solution treatment after welding to ensure consistency in microstructure and properties between the weld and the base metal.

In terms of inspection requirements, the standard emphasizes weld quality control. Finished welded tubes need to undergo visual and dimensional inspection, eddy current or ultrasonic testing, and if necessary, pressure resistance or mechanical performance tests to verify their pressure bearing capacity and reliability. These requirements are particularly critical for high-risk process systems.

In practical projects, welded tubes are not only a matter of materials, but also involve delivery stability and application compatibility. In the supply of nickel alloy welded tubes, MTSCO places greater emphasis on the usability of the products in engineering scenarios. For example, providing material comparison and standard adaptation suggestions in the early stages of the project, focusing on weld consistency and dimensional stability in the production phase, and designing different packaging and transportation plans based on usage differences in the delivery phase. Through this application-oriented approach, we help customers reduce selection bias and on-site uncertainty.

If you are evaluating the applicability of ASTM B705 nickel alloy welded tubes in specific systems, please feel free to send us the medium conditions, temperature and pressure range, and size requirements. The MTSCO team can provide you with more practical technical advice and supply solutions based on engineering experience.
