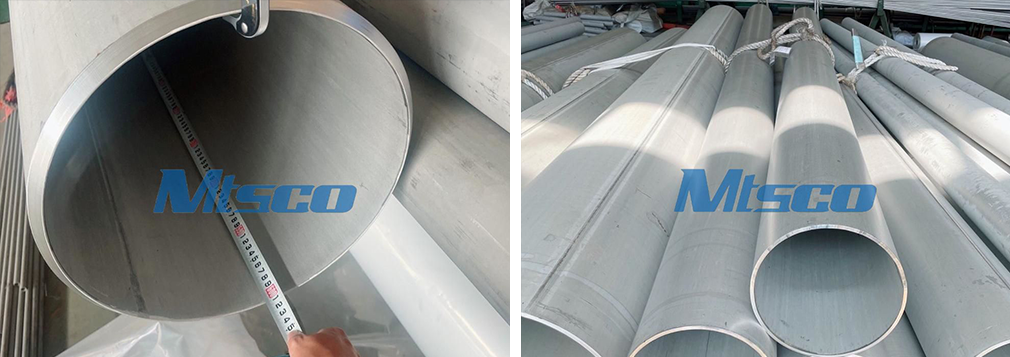

2205 duplex steel welded pipe for marine environments with woven bag

2205 welded pipe:

2205 duplex stainless steel welded pipe combines the advantages of both austenitic and ferritic stainless steels. It offers high yield strength, approximately twice that of 304/316 stainless steels, and excellent corrosion resistance, particularly against chloride-induced pitting and crevice corrosion. This makes it well-suited for harsh environments such as offshore platforms, chemical processing plants, and desalination systems. Additionally, 2205 maintains good weldability and formability, making it a reliable choice for structural and fluid transport applications where both mechanical performance and corrosion resistance are critical.

Parameter Table：

Chemical composition:

Physical properties:

Quality control method：

Secondary inspection of raw materials

The raw materials used by MTSCO are all from well-known Chinese steel mills, such as Baosteel, Qingshan, TISCO, Dongfang Special Steel, etc., to ensure reliable quality. Each batch of raw materials must provide a material certificate (MTC) and PMI (spectral analysis) report. After the raw materials arrive at the factory, we will also conduct a secondary PMI test to ensure that they fully meet the production requirements and eliminate the risk of unqualified raw materials.

Production management with traceability throughout the process

MTSCO's welded pipes are mainly formed by rolling (RBE) and bending, using PAW+GTAW automatic welding process to ensure full weld formation and stable quality. We have upgraded the technology based on traditional processes, especially for large-diameter thick-walled welded pipes. Problems such as out-of-round welds have been optimized. At the same time, a 12-meter-long annealing furnace is used for solid solution treatment to make the annealing effect more uniform and thorough. The production process is supervised by experienced engineers and quality inspectors throughout the process. Each process is recorded and photographed for archiving, and the whole process is traceable in combination with the process flow card.

100% quality inspection before leaving the factory

Before leaving the factory, MTSCO conducts a comprehensive quality inspection on each welded pipe, including basic inspections such as appearance, size, quantity, PMI, as well as mechanical property testing, hardness testing, X-ray flaw detection, ultrasonic testing (UT), eddy current testing (ET), water pressure testing, etc. The maximum supported water pressure test is an outer diameter of 630mm, and the weld part is 100% X-ray non-destructive testing. We also support the verification of third-party testing agencies such as SGS, TUV, BV, etc. to ensure that each batch of products is of reliable quality and meets the standards.

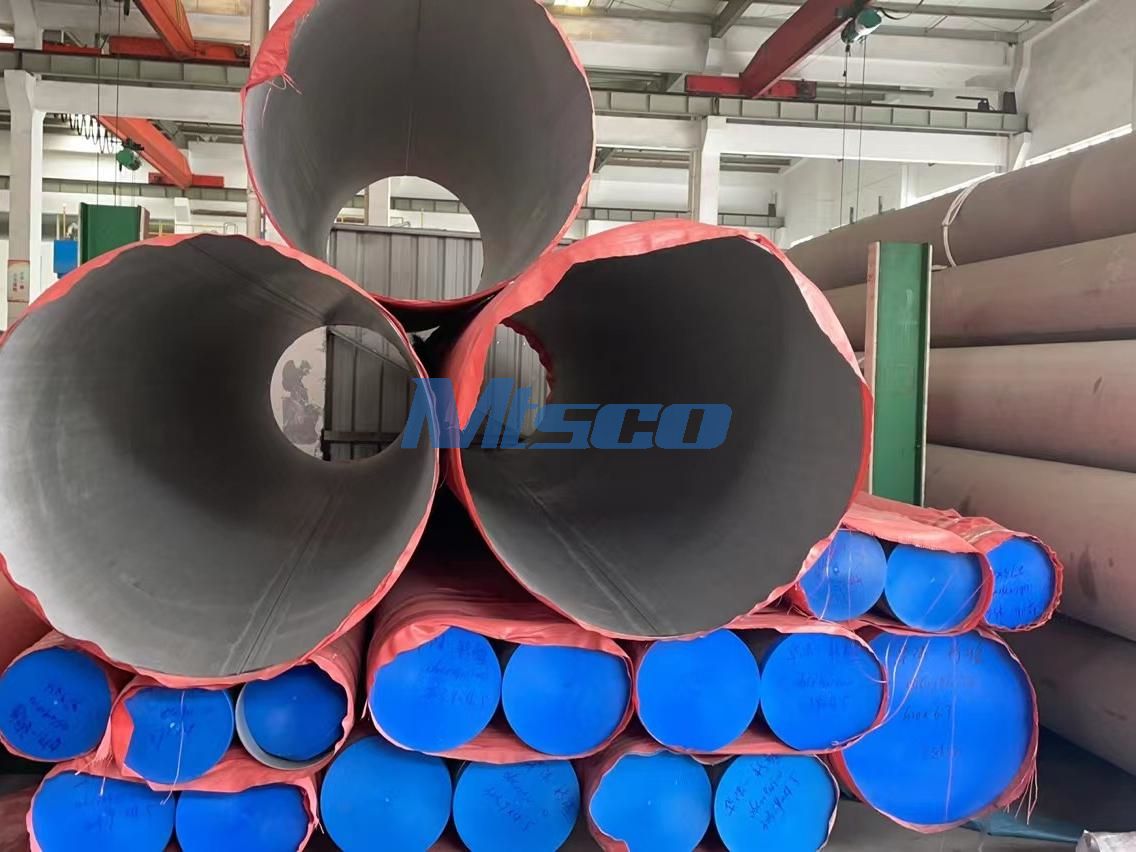

Product Packaging：
