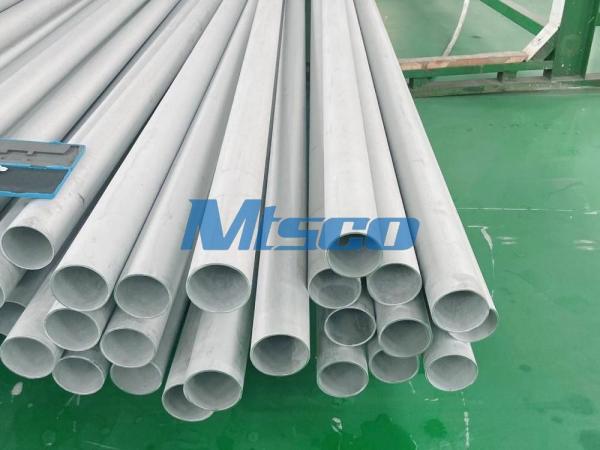

Alloy 601 N06601 Seamless Pipe NPS 3 SCH 40S Annealed Pickled ASTM B167

Alloy 601 N06601 Seamless Pipe NPS 3 SCH 40S Annealed Pickled ASTM B167

Discover MTSCO, Your Factory Complexes Partner

MTSCO operates using a "Factory Complex" model, collaborating with multiple specialized manufacturing facilities. Our product portfolio encompasses pipes, fittings, flanges, plates, wires, and oilfield-related products. Through this diversified supply system, MTSCO offers a comprehensive range of industrial metal materials tailored for high-temperature, corrosive, and complex industrial environments.

Within our nickel alloy lineup, Alloy 601 is a key grade in our high-temperature materials series. For seamless pipes, MTSCO focuses not only on the dimensions and surface condition of individual pipes but also on their compatibility with downstream fittings, flanges, welding/installation processes, and equipment systems. This ensures the products are ideally suited for continuous-operation scenarios such as chemical processing, heat treatment, and high-temperature equipment.

From Raw Material to Seamless Pipe : See How It's Made

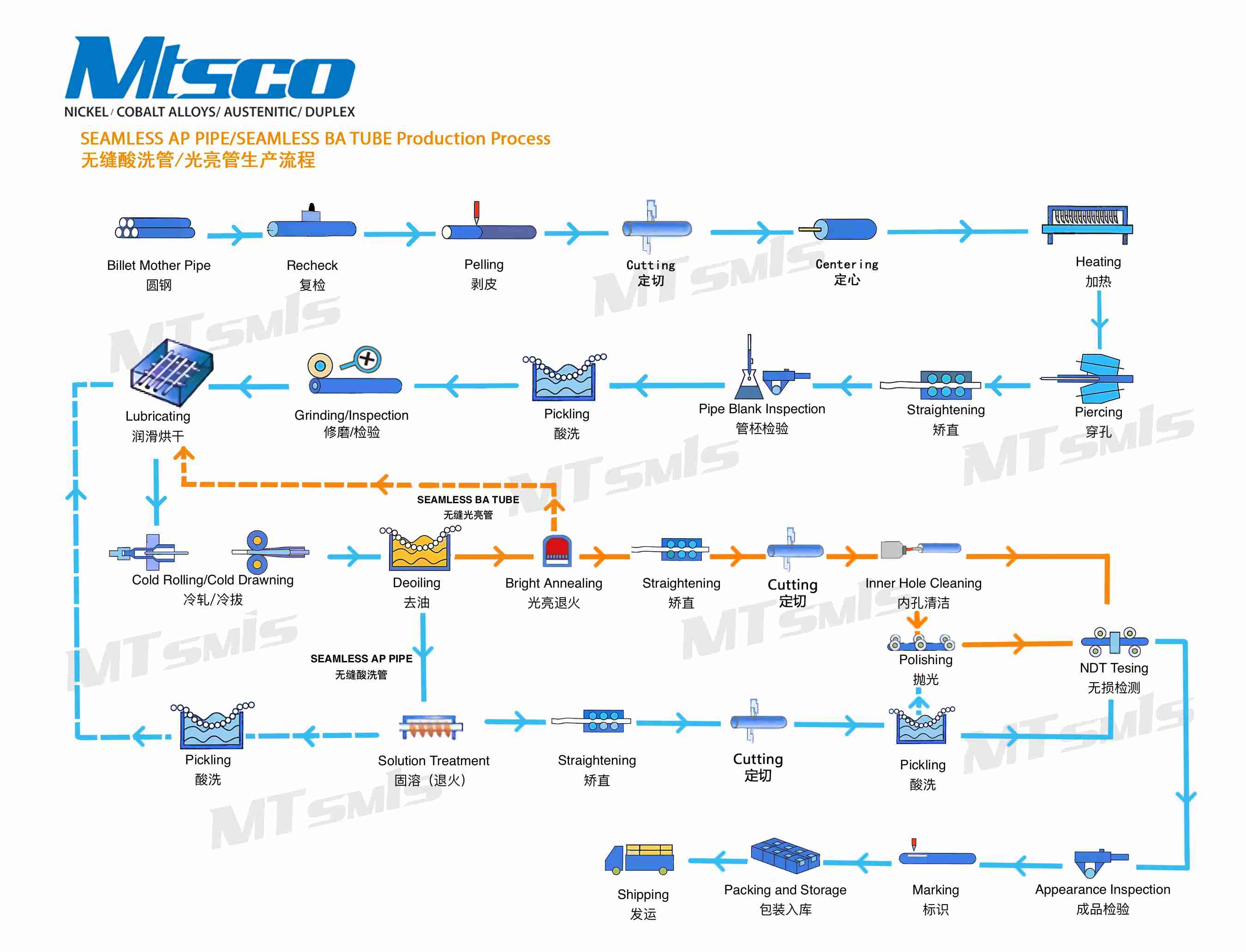

Alloy 601 seamless pipes typically undergo a series of processes: billet re-inspection, piercing, cold rolling, heat treatment, pickling, straightening, cut-to-length, non-destructive testing (NDT), visual inspection, and packaging. For NPS 3 SCH 40S pipes, the cold-working stage focuses on controlling outer diameter, wall thickness, and roundness, while heat treatment and pickling determine the material's microstructural state and surface cleanliness.

The "Annealed & Pickled" finish is ideal for applications requiring the removal of surface scale and processing residues, as well as for those involving subsequent welding and assembly. This treatment facilitates further processing and enhances the pipe's suitability for high-temperature equipment and chemical piping systems.

What are the advantages of our seamless pipes?

·  Suitable for high-temperature oxidation environments

Alloy 601 is ideal for use in industrial furnaces, heat treatment equipment, and high-temperature chemical piping.

·  Superior stability via seamless construction

The design eliminates longitudinal welds, making it better suited for piping systems subject to high temperatures, pressure, and thermal cycling.

·  High compatibility (NPS 3 SCH 40S)

A standard industrial piping specification that easily integrates with fittings, flanges, and valves.

·  Annealed & Pickled surface facilitates processing

This condition simplifies subsequent welding, assembly, and surface inspection.

·  Consistent dimensions ideal for bulk procurement

Strict control over outer diameter, wall thickness, roundness, and end conditions minimizes the risk of installation deviations.

Specification

Material Properties and Application Scenarios

Alloy 601 (UNS N06601) is a nickel-chromium-iron alloy containing aluminum. The chromium and aluminum content enables the material to form a stable oxide layer in high-temperature oxidizing environments, providing excellent oxidation resistance for applications such as heat treatment equipment, industrial furnace components, and high-temperature air service.

In addition to high-temperature oxidation resistance, Alloy 601 offers good corrosion resistance and workability. It is suitable for high-temperature piping, chemical heating systems, furnace tubes, heat treatment equipment, combustion systems, and related industrial components. Specific suitability regarding temperature, media, and pressure conditions should be determined based on piping specifications, system design, and the operating environment.

FAQ

Q1: For what high-temperature operating conditions is Alloy 601 seamless pipe suitable?

A1: Alloy 601 is suitable for environments involving high-temperature oxidation and thermal cycling, such as industrial furnaces, heat treatment equipment, and chemical heating systems.

Q2: What are the benefits of an "Annealed and Pickled" surface finish?

A2: An annealed and pickled finish improves the surface condition after processing by removing oxide scale and processing residues, thereby facilitating subsequent welding, assembly, and visual inspection.

Q3: How does the material selection differ between Alloy 601 and Alloy 600?

A3: Alloy 601 contains aluminum and typically emphasizes high-temperature oxidation stability, whereas Alloy 600 is often used in applications requiring a combination of corrosion resistance and high-temperature performance. Actual selection depends on temperature, media, and equipment design.

Q4: What types of testing can be performed on this Alloy 601 pipe?

A4: Common tests include PMI (Positive Material Identification), dimensional inspection, visual inspection, UT (Ultrasonic Testing), ET (Eddy Current Testing), HT (Hydrostatic Testing), chemical composition analysis, and mechanical property testing. Specific test items can be confirmed based on product specifications and application requirements.
