Stainless Steel Wire

Austenitic / Duplex Steel / Nickel Alloy / Cobalt Alloy

Annealing and Soft 304CU /304H /304H1 /304HD /304HC Stainless Steel Wire Bright Sureface

304 stainless steel wire is composed of 18% chromium and 8% nickel. It is the most widely used stainless steel spring wire because of its high corrosion resistance and good tensile strength. For spring applications, it is usually offered in cold-drawn conditions. If properly treated after molding, it will solidify less than most other spring materials at temperatures up to 500ºF. Nickel coated stainless steel wire was developed to have excellent lubricating properties to minimize friction during coiling

Send Inquiry
Annealing and Soft 304CU /304H /304H1 /304HD /304HC Stainless Steel Wire Bright Sureface

Annealing and Soft 304CU /304H /304H1 /304HD /304HC Stainless Steel Wire Bright Sureface


Material: Stainless Steel Wire
Grade: 300series (304CU /304H /304H1 /304HD /304HC, 304, 304L, 304H, 304N, 304ES, 316L, 321...) 130M, 200CU, 201CU, 202, , 410, 420, 430,etc
Standard: ASTM A580, JIS G4309, EN 10088-3, GB/T4240, etc
Size: φ0.15mm-φ16mm; or according to customers' requests
Surface: Bright, matte ,downy, electrolysis bright ,cloudy ,plain ,black,etc
Condition: Annealed and Soft, 1/2 hard, 3/4 hard and full hard
Type: Spring Wire (B-SPR/D-SPR)
Packing: Woven bag, core, wooden reel, etc


304 stainless steel wire is composed of 18% chromium and 8% nickel. It is the most widely used stainless steel spring wire because of its high corrosion resistance and good tensile strength. For spring applications, it is usually offered in cold-drawn conditions. If properly treated after molding, it will solidify less than most other spring materials at temperatures up to 500ºF. Nickel coated stainless steel wire was developed to have excellent lubricating properties to minimize friction during coiling


Steel gradeChemical composition
CSiMnPSNiCrMoOther composition
304CU≤0.03≤1.0≤2.0≤0.040≤0.038.0-1017.0-19.0≤0.6Cu:3.0~4.0
304H0.067.08≤1.0≤2.0≤0.040≤0.038.0-9.018.0-20.0≤0.6Cu:≤0.6,N: ≤0.08
304H10.06-0.08≤1.0≤2.0≤0.040≤0.038.0-9.018.0-20.0≤0.6Cu:≤0.6
304HD«0.050.25-0.551.6-2.0≤ 0.035≤0.0158.5~8.918.0-18.5
Cu:≤.5-2.0,Tol AI:≤0.015
304HC≤0.06≤1.0≤2.0≤0.045≤0.038.0~10.518.0-20.0
Cu:1.0~3.0,N:≤0.08



Application for 304 stainless steel wire:

304: Kitchen appliance and generally purposo

304M: Twister,kitchen appliance,screw cap,wire netting

304MD: DDM use

304MA: Non-magnetism

304MN: The 304m after added content of Mn

304CU: Cross bolt,screw

304H: Steel wire,spring,tight wire,chains

304H1: Steel wire,spring,tight wire,chains

304HD: Preliminary cold heading

304HC: Cold heading(hexagon bolt)



Steel grade
Physical Property
Y.ST.SEL.HRB
3042205866369
304M2255605572
304MD2105756272
304MA2255907579
304MN



304CU19050556
304H3125905572
304H12356106475
304HD2125407585
304HC2255106265


MTSCO is a professional supplier of steel wire with complete production technology and rich management experience. We produce spring wire, electrolytic polished wire, fine wire, wire for netting, hose wire, welding wire, cold heading, locking wire, and other products. Our main materials are stainless steel and alloy steel, and the raw materials we use are from the biggest and most well-known steel mills in China, we can supply wire in sizes ranging from 0.15 mm to 16 mm in diameter. Our factory is well-equipped and our products conform to ASTM, DIN, GTB, JIS, JSG, and other international standards. We have experienced foreign trade staff with high-quality service and can produce high-quality products according to customers' requirements.

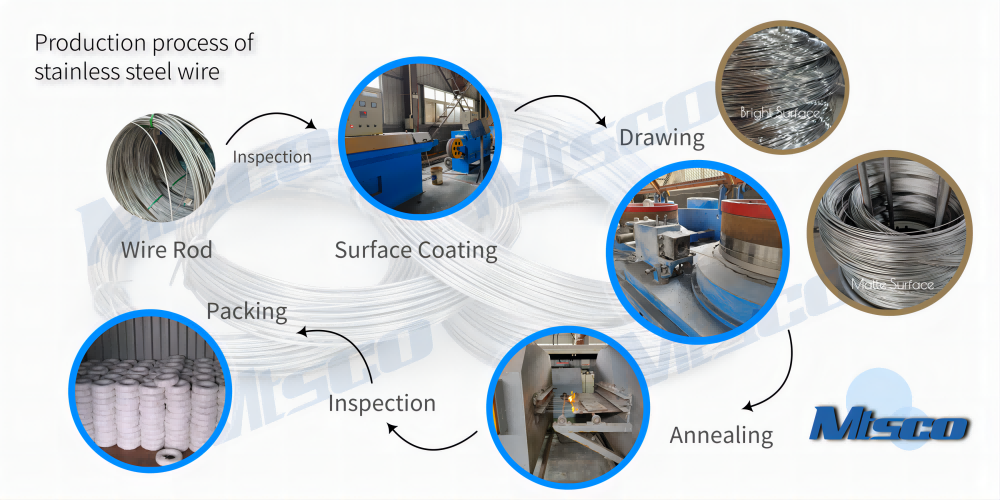

s production process of stainless steel wire.png




Manufacturing Experience

Plant Area

Max Diameter of Welded Pipe

Annealing Furnace Length

What Grades Can We Provide?

Nickel Alloy
NI-MO: N10001,N10665,N10675...
NI-CR-MO: N10276,N06022,N06035,N06455,N06002...
NI-CR-MO-CU: N06030,N06200,N08031,N08825,N08020...
NICR-MO-W: N06230...
NICKEL: N02200,N02201...
NI-CU: N04400,N05500...
NI-CR-FE: N06600,N06601,N06690,N08800,N08810,N08811...
NI-CR-MO-NB: N06625,N07718...

Austenitic
304/L/H/N, 316/L/H/N/Ti, 321/H, 309/H, 310S, 347/H, 317/L, 904L...

Duplex Steel
31803, 32205, 32750, 32760...

Cobalt Alloy
Alloy 188/ UNS R30188, Alloy L-605/ UNS R30605, Alloy S-816, Alloy 6B, UMCo50, FSX-414, MP-159...
